Description

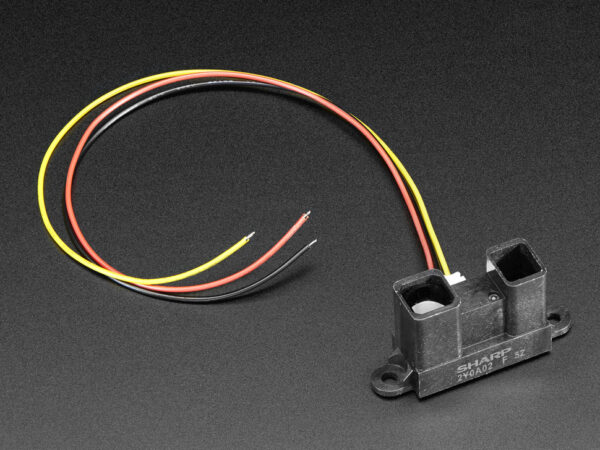

This SHARP distance sensor bounces IR off objects to determine how far away they are. It returns an analog voltage that can be used to determine how close the nearest object is. Comes with 8′ long 3-JST interface wire. These sensors are good for detection between 20cm-150cm. For over 1 m distance, we suggest using sonar sensors.
To use, connect black wire to ground, red wire to 5V and white wire to analog input. The analog voltage out will range from 3V when an object is only 8′ (20 cm) away and 0.4V when the object is 60′ (150 cm) away.
For more information, please see the datasheet!
Technical Details
Dimensions:
- Length: 21.66mm/0.85in
- Width: 44.39mm/1.75in
- Height: 18.67mm/0.75in
- Weight: 5.06g without cable/7.88g with cable
Screw holes are 37mm apart, 3.2.mm diameter.
NETduino driver code
- GP2Y0A02YK Datasheet
