Description

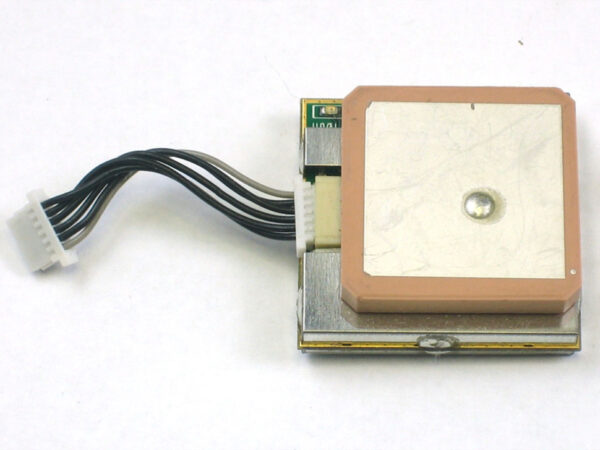

Sirf III chipset GPS module with 6 pin cable. Includes power/lock indicator LED and backup supercap. One of the nicest GPS modules I’ve come across
- 5V power, ~40mA current draw
- 45s cold start, 38s warm start, 8s hot start
- -159dB sensitivity (I tested this a lot in the canyons of downtown New York)
- 1.2′ x 1.2′ x 0.4′
Lots more info including datasheets, software, etc. available here
Play video: #Adafruit Ultimate GPS
Technical Details
Dimensions:
- Length: 30.12mm/1.19in
- Width: 30.00mm/1.18in
- Height: 10.39mm/0.41in
- Weight: 15.85g/0.56oz
- Cable Length: 31.25mmm/1.23in
