Description

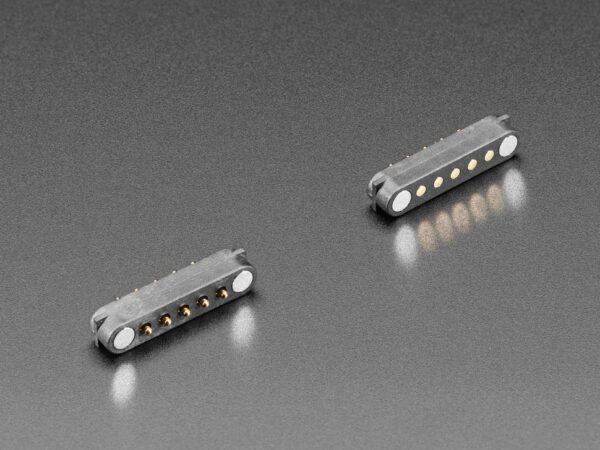

If you love power adapters or toys & gadgets that have magnetic connections, you can now experiment with these futuristic connectors easily. It’s sorta like a DIY ‘MagSafe-styled’ connector, with five 0.1′ spaced contact pogo pins and a straight solderable connection to your PCB. If you’ve ever owned a MacBook or a littleBits set, you’ll find the functionality familiar.
Bring the two halves together and the embedded magnets attract, making a firm connection and assuring that all the pogos make contact. If you try to connect the contacts backwards, they will repel!
Use it for power, data, and maybe a magnetic STEMMA QT or USB connector? – whatever you wish! Comes with two halves that, of course, match up nicely.
Play video: New Prods 4/27/22 Feat. Adafruit QT Py ESP32 Pico – WiFi Dev Board w/STEMMA QT -8MB Flash 2MB PSRAM!
Technical Details
- Diagram Page 1
- Diagram Page 2
