Overview

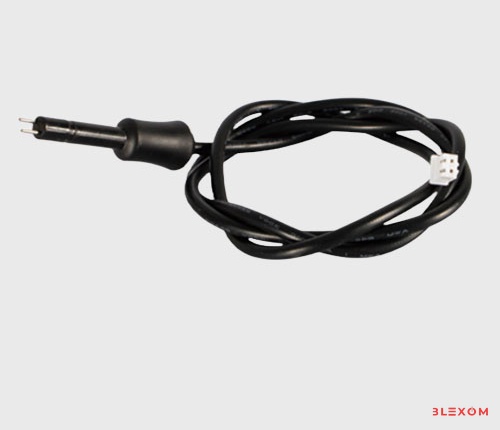

BA-K212 model sensor is electrochemical electrical conductivity water quality detection sensor.It works by applying a constant voltage at both ends of the electrode of the sensor, so that the change of the resistance of the solution leads to a change of the current of the measuring electrode and the change is in accordance with Ohm’s law, the the resistivity value could be replaced by conductivity value, so as to achieve the measurement of the conductivity of the solution.
Key Features
- Quick response
- High sensitivity
- Low power consumption
- Linear output
- RS485 signal output
Applications
It is widely used in laboratory research, domestic sewage, industrial production, seawater testing and other fields of electrical conductivity detection.
Technical Specifications
| Detection index | Parameter |
| Range | 0~20000μS/cm |
| Temperature range | 0~80C |
| Resolution | 0.01μS/cm |
| Response time (T 90) | ≤ 30s |
| Accuracy | ≤±3% |
| Protection class | Ip68 |
| Working Pressure | 0~4bar |
| Working humidity | Relative humidity <90% |
| Installation method | Immersion type |
| Signal output method | 4~20mA/RS485 |
| Calibration method | Two-point type |
