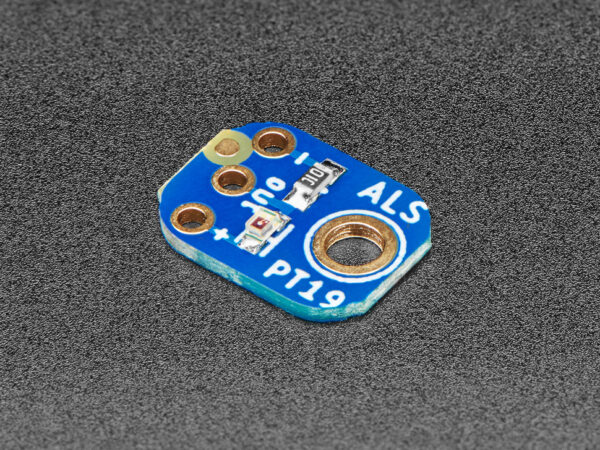

Description
It’s a pretty simple sensor – connect – to ground, + to 2.5V-5.5V or so to power it. Now measure the analog voltage on the OUT pin. That’s it! The voltage will increase when the sensor detects more light.
Play video: New Products 12/2/2015
Technical Details
Revision History:
- As of Sep 21, 2022 – The PCB is a little thinner may be 3.2 or 1.6mm thick
- Datasheet
- EagleCAD PCB Files on GitHub
- Fritzing object in the Adafruit Fritzing Library
- 7.8mm x 10.6mm x 2.4mm / 0.3′ x 0.4′ x 0.09′
- Weight: 0.2g
